Precision Servo Drives

A precision servo drive is the indispensable component in a motion control system that converts low-power command signals from the controller into the high-power, conditioned electrical current required to drive a servo motor with extreme accuracy and stability. Far beyond a simple amplifier, these drives integrate sophisticated digital signal processing (DSP) to close the critical servo control loops, ensuring the motor executes the commanded position, velocity or torque with determinism.

In systems demanding sub-micron or nanometer tolerances, the quality of the drive—particularly its noise characteristics, current loop bandwidth and processing speed—is paramount. The servo drive’s specialized role in tightly regulating motor current is what makes the demanding specifications of precision motion control practically achievable in modern industrial and scientific applications.

What is the difference between a servo drive and a VFD?

The difference between a servo drive and a Variable Frequency Drive (VFD) lies in their core function, control objective and performance characteristics, reflecting their intended application environments.

A VFD, also known as an AC drive, is primarily designed for speed control of standard AC induction motors in industrial equipment like fans, pumps, compressors and conveyors. Its control objective is typically open-loop or a simple closed-loop, managing the motor's speed by varying the frequency and voltage of the power supplied. VFDs prioritize efficiency, torque at low speed and continuous operation over high positional accuracy. They are cost-effective solutions for general industrial automation where velocity and torque regulation suffice.

A servo drive, conversely, is engineered for precision control of position, speed and torque on specialized precision motion systems. Unlike a VFD, a servo drive uses continuous, real-time feedback (from encoders or resolvers) to close highly dynamic control loops. This enables features such as high-bandwidth current loops, sophisticated PID control with advanced filtering and the ability to maintain a precise commanded position even under high external loads.

Precision servo drives provide advanced control features such as trajectory following, electronic gearing and high synchronization capabilities that are simply not possible with a general-purpose VFD. This specialization makes the servo drive critical for applications requiring sub-micron positioning and complex, coordinated motion.

What are the different types of amplifiers?

In the context of precision motion control, the term "amplifier" is often used interchangeably with "servo drive," referring to the device that powers the motor. These drives primarily use two distinct electrical conversion technologies: PWM and linear amplification.

1. Pulse Width Modulation (PWM) Amplifiers: These are the most common type due to their high power and exceptional efficiency. A PWM amplifier switches transistors rapidly (in the tens of kilohertz range) to create a pulse train whose duty cycle determines the average current sent to the motor. This digital switching minimizes energy loss as heat, resulting in a compact, efficient drive capable of high current output. However, the high-frequency switching introduces current ripple (noise) into the motor windings and the system's power supply. This noise can limit the achievable servo loop bandwidth and positioning performance, making careful filtering essential. PWM drives are a popular precision servo drive choice where high force-to-size ratio and low heat generation are critical factors.

2. Linear Amplifiers: These operate the power transistors within their linear (non-saturated) region, continuously modulating the output current based on the input command. This process generates an output current that is extremely clean, virtually free of high-frequency switching noise or current ripple. This low-noise, high-fidelity signal is ideal for ultra-precision applications requiring the smoothest possible velocity control, such as laser direct writing or two photon polymerization. The trade-off is significantly lower efficiency, as excess voltage is dissipated as heat, requiring larger, heavier heat sinks and resulting in lower power output capabilities.

The choice between the two is a fundamental engineering trade-off between power/efficiency (PWM) and noise/smoothness (linear).

What is the purpose of a servo amplifier?

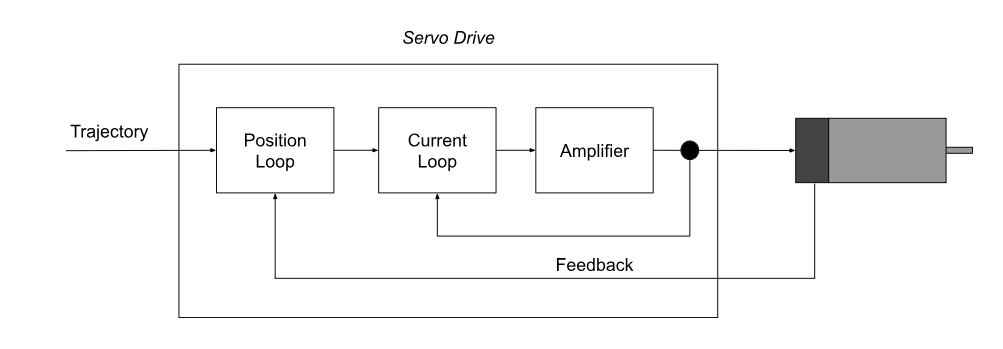

The fundamental purpose of a servo amplifier (or drive) is to act as the intermediary power interface between the low-voltage logic of the motion controller and the high-power demands of the servo motor. It performs three critical, interconnected functions:

1. Current Amplification and Conversion: It boosts the low-power, analog or digital command signal from the motion controller (which dictates desired position, velocity, or torque) into a high-current, phase-controlled output required by the motor windings. For AC brushless motors, it converts the DC bus voltage into controlled three-phase AC power.

2. Current Loop Closure: The servo drive is responsible for closing the fastest and most critical control loop: the current (or torque) loop. It rapidly measures the actual current flowing into the motor and adjusts the output to match the commanded current, ensuring the motor generates the precise torque requested by the external controller.
3. Local Control Loop Management: Servo amplifiers typically include a PID controller that can execute local feedback loops (velocity and/or position) around the motorized device. This enables the drive to directly react to disturbances and regulate the motor's immediate dynamic response before the signal reaches the main motion controller. This distributed control architecture ensures accurate performance. The servo amplifier circuit diagram illustrates the connection between the precision servo drive and motor, detailing the position loop, current loop and amplifier elements.



What are the disadvantages of servo drives?

While indispensable for high-performance applications, servo drives and the systems they control have distinct disadvantages compared to simpler motion technologies:

1. Higher System Cost: The most immediate drawback is the expense. Servo drives and the accompanying servo motors, high-resolution encoders and sophisticated control systems are significantly more expensive than simpler, open-loop alternatives like stepper motor systems or VFDs.

2. Complexity of Commissioning: Servo systems require intricate setup, including parameter definition (motor poles, current limits, phase setup) and, most critically, tuning. Servo loop tuning involves setting numerous gain parameters (e.g., PID, filters) to achieve stability and optimal dynamic performance. This process requires specialized knowledge and tools, adding commissioning time and complexity.

3. Requires Feedback and Wiring: Unlike open-loop systems, servo drives require the integration of a separate feedback device (encoder or resolver) and associated cabling, increasing the total component count, wiring complexity and potential points of failure.

4. Heat Dissipation: Linear servo drives, while offering low noise, dissipate a large amount of power as heat. Mitigating this requires significant cooling solutions and larger cabinet space, which impacts overall system efficiency.

When determining if an application truly requires high performance, it’s important to acknowledge that the disadvantages of servo drives include higher costs and complexity.

Is a servomotor AC or DC?

A servomotor can be either AC or DC. Historically, brushed DC servo motors were prevalent, offering simple control and high torque at low speeds. However, for modern, high-performance precision motion applications, AC brushless servomotors are the overwhelmingly dominant choice.

AC brushless servomotors operate on three-phase AC power synthesized by the servo drive. Their design eliminates the physical brushes used in DC motors, removing a source of friction, wear and electrical noise. Furthermore, precision applications typically use AC brushless, slotless motors to eliminate disturbances caused by cogging forces—the magnetic reluctance that creates cyclical disturbances as motor teeth align with magnets.

AC motors’ ability to generate high-power density and operate reliably at high speeds makes them superior for dynamic precision tasks. Consequently, precision servo drives often utilize AC servomotors for better performance and cleaner motion quality.

What does precision mean?

In the context of a servo control system, precision refers to the system's ability to consistently and repeatedly execute a commanded action. It is primarily a measure of the system’s consistency, stability and resolution, and is defined by two key metrics:

1. Repeatability: The system’s ability to return to the same physical position multiple times. This is the tighter tolerance in most precision systems and is often a function of the drive’s current loop stability and the controller’s ability to dampen structural vibrations.

2. Accuracy: The system’s ability to move to a known, absolute target position, measured against a calibrated reference.

A high-precision system minimizes random errors and positional variance. Achieving this requires the drive to maintain high control loop bandwidth and low electrical noise. Therefore, precision servo drives are designed for high accuracy in motion control applications, providing the stable current delivery necessary to maintain the commanded position with minimal deviation. This is crucial for maximizing throughput and minimizing scrap.

What is the difference between a servo drive and a stepper motor?

The difference between a servo drive system and a stepper motor system is fundamentally defined by their control architecture: closed-loop vs. open-loop (or micro-stepped open-loop).

1. Stepper Motor (Open-Loop): Stepper motors move in fixed, discrete angular steps (typically 200 steps per revolution). The drive commands a sequence of steps, and the motor is assumed to have followed the command without external verification. This open-loop nature makes steppers simpler and less expensive, suitable for applications with low-load, low-speed, low-precision requirements. They lack the ability to correct for external disturbances or missed steps.

2. Servo Drive System (Closed-Loop): Servo drives provide closed-loop control that requires an external feedback device (encoder, resolver) to close the PID loop. The drive constantly monitors the motor’s actual position and dynamically adjusts current to correct errors and maintain the commanded position. This allows the system to operate under high or varying loads, achieve smoother velocity control and recover from unexpected disturbances.

Because precision servo drives offer superior performance compared to stepper motors in terms of speed, torque, efficiency and dynamic accuracy, they are the necessary choice for nearly all high-end, multi-axis or high-acceleration applications.

What is the difference between servo drive and motion control?

Servo drives are components of motion control systems, not substitutes for the entire discipline. Motion control is the overarching engineering discipline that orchestrates the entire machine's movement, while the servo drive is the essential hardware link within that system's hierarchy.

1. Motion Control (System/Discipline): This is the entire field, encompassing the trajectory planning, kinematic models, synchronization protocols and the holistic strategy for governing movement. The motion controller is the "brain" that owns the ultimate decision-making authority and the total system's performance envelope.

2. Servo Drive (Component/Power Stage): The drive is the "muscle" and the "reflex" of the system. It receives position, velocity or force commands from the controller and is responsible for the immediate, high-power execution. It converts those commands into current, amplifies the current sent to a motor, and closes a PID loop (the current loop and often the velocity loop) around the motor and an external feedback device.

Understanding the role of precision servo drives in motion control is essential for system design. The controller defines what the move should be (the path and timing), and the drive ensures that the current is supplied perfectly to the motor to execute that command instantaneously and maintain positional integrity.
